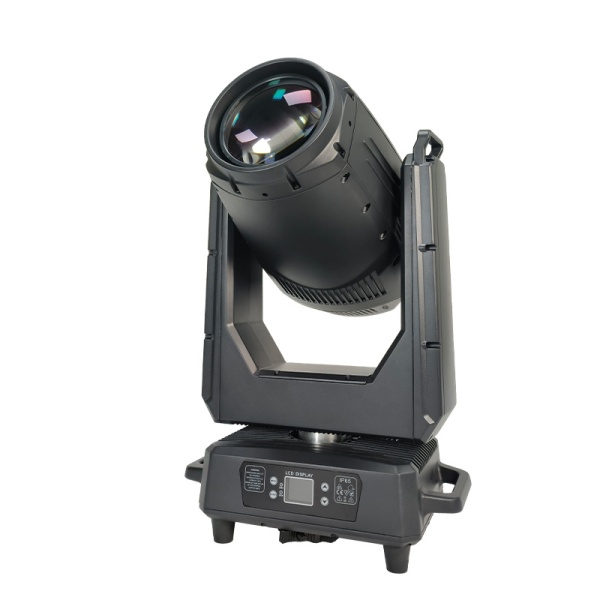

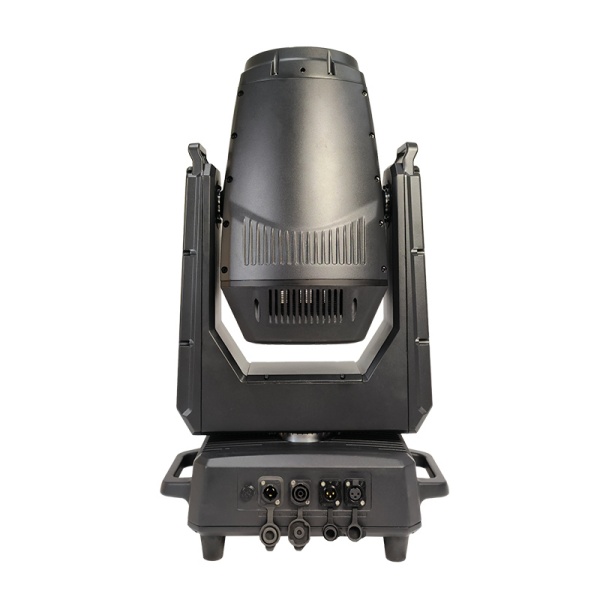

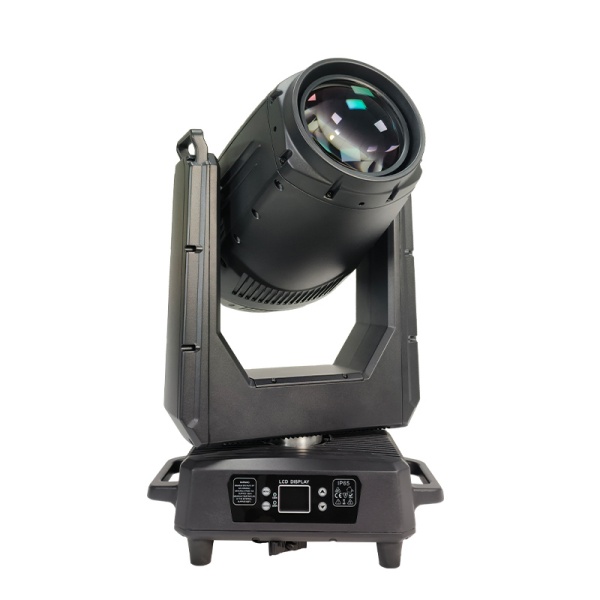

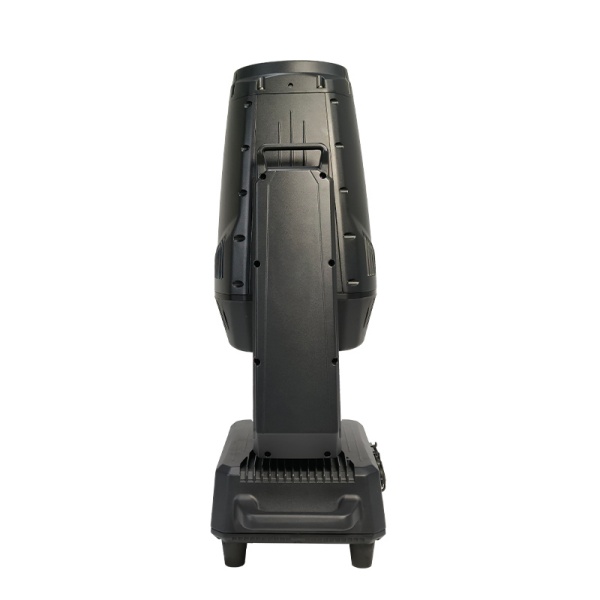

BY-9500LIP IP66 Outdoor 500W BSW LED Moving Head Light

parameters:
Light source: 500WLED module, Light source life: ≥20000 hours
Color temperature: 8000K
Light output diameter: 138mm
Illuminance: 12000Lux@15m (3°)
Zoom range: 4-36 degrees
Horizontal scanning: 540°, using advanced magneto-electric positioning system, 16-bit scanning
Vertical scanning: 270°, using advanced magneto-electric positioning system, 16-bit scanning
Color system: 1 color wheel, 8 colors
Color mixing system: CMY infinite color mixing
CTO color temperature: 3200-8000K adjustable
Fixed pattern: 1 fixed gobo plate, 11 gobos
Rotating pattern: 1 rotatable gobo plate, 8 pluggable gobos
Prism: 1 8-prism, 1 6-row mirror, can be superimposed and rotated independently
Focus: electric focus
Fog: independent fogging lens, light transmittance greater than 90%
Frequency Flash: 0~20Hz, optional random strobe and pulse strobe
Dimming: 0~100% linear dimming
Control mode: DMX512, self-propelled, voice control, RDM
Channel: 23CH
Display: touch control interface, display temperature, lamp brightness
Input voltage: AC90-240V, 50/60 Hz
Power connection: waterproof power connector input/output
Signal connection: three-core or five-core waterproof XLR socket
Total power: 500W, Power factor: 0.85
Working environment: -20℃～45℃
Dimensions: 41.5*24*70.6cm
Net weight: 23kg
Shell: magnesium alloy shell, black outdoor paint
Cooling system: air cooling + die-cast magnesium alloy, full temperature
monitoring, automatic over-temperature protection
Protection level: IP66
