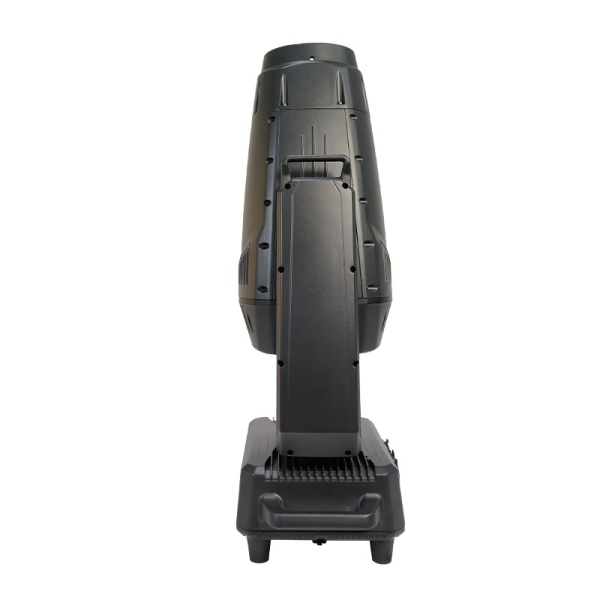

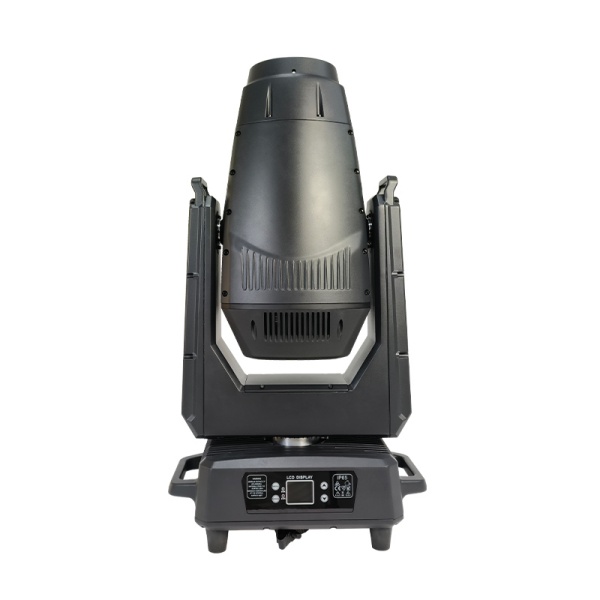

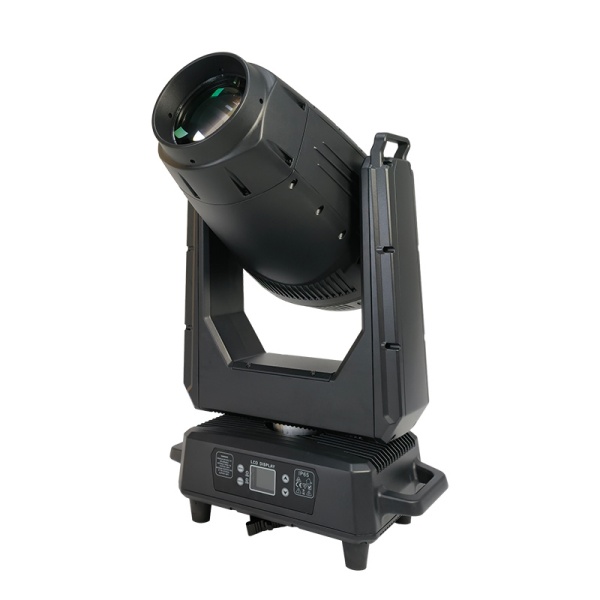

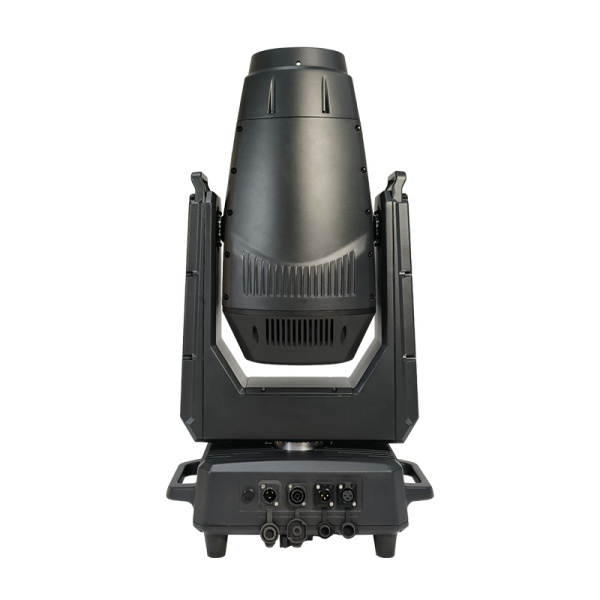

BY-9420RIP IP66 Outdoor BSW 420W Beam Spot Wash Moving Head Light

Features:
1. High protection level: IP66, not afraid of heavy rain impact, can
completely prevent dust from entering. 2. Lightweight: only 24KG. 4. Magnetic coding positioning: fast and accurate without losing step. 3. Good heat dissipation: air cooling + full die-cast magnesium alloy +
radiator heat dissipation, extending the life of the lamp. 4. With dynamic effect plate: suitable for different application places. 5. Strong corrosion resistance: passed 500 hours salt spray test, suitable for
seaside, desert and other environments. 6. Good shock absorption: not afraid of collision and impact caused by
mobile performance transportation. Optics
Light source: 420W long-life gas discharge bulb
Color temperature: 7800K
Diameter of light outlet: 138mm
Illumination: 190000Lux@15m (2°)
Light source life: 3000 hours
Zoom range: 2-40 degrees
Effects
Horizontal scan: 540° Vertical scan: 270° Color system: one color wheel, 11 colors plus white light
CTO color temperature adjustment: 3200-7500K
Fixed gobo: one fixed gobo plate, 11 gobos
Rotating gobo: one rotatable gobo plate with 8 gobos, which can be
customized, gobo plate outer diameter 14.4MM, inner diameter 9.5MM
Effect plate: one dynamic effect plate
Focus: electric focus
Strobe: 0~20Hz
Dimming: 0~100%
Prism: one 8-prism, one 6-row prism, can be superimposed and rotated
independently. Control
Control mode: DMX512/RDM
DMX channel: 18/22CH
Display: Touch control interface, can remotely control the bulb switch
function, display fan speed, bulb usage time
Power supply
Input voltage and frequency: 90-240V, 50/60 Hz
Power connection: Waterproof power connector input/output
Signal connection: 3 pin or 5 pin waterproof XLR socket
Total power: 600W
Power factor: 0.95
Working environment: -20℃～45℃
Physical characteristics
Size: 41.5*24*76.6CM
Net weight: 24kg
Cooling system: air cooling + die-cast magnesium alloy + radiator
Casing: die-cast magnesium, semi-gloss fine black sand outdoor paint
Protection level: IP66
Standard configuration: folding integrated hook, power cable 1PC, DMX
cable 1pc, safety rope 1PC
